When moving massive aircraft like the Airbus A330 or Boeing 777, precision and safety on the ground become just as crucial as in the air. Among the many tools and safety protocols used during aircraft towing, one component stands out for its importance and simplicity—the aircraft steering bypass pin. Whether you’re a ground handling technician, aircraft mechanic, or aviation student, knowing how this small pin protects multi-million-dollar aircraft systems is essential.
This article explores the function of the nose wheel steering bypass pin, focusing on its importance across various aircraft types—including the Airbus A330 and Boeing 777.
What is a Steering Bypass Pin?
The aircraft steering bypass pin is a mechanical device inserted into the nose landing gear to temporarily disable or “bypass” the nose wheel steering system. This is necessary during towing or pushback operations to prevent hydraulic pressure from interfering with tug control.
Each aircraft type has a unique bypass mechanism, but the purpose is universal: prevent damage to the nose gear steering actuators by disconnecting them during external movement.
Why the Bypass Pin is Crucial for Aircraft Like the A330 and B777
1. Prevents Damage to Hydraulic Steering Actuators
Both the Airbus A330 and Boeing 777 feature complex, hydraulically powered nose wheel steering systems. Towing without disengaging this system can force hydraulic fluid into components in reverse flow, damaging valves, actuators, or even causing a leak that grounds the aircraft.
2. Protects Expensive Landing Gear Systems
Nose landing gear systems on wide-body aircraft can cost millions to repair or replace. Improper towing without a bypass pin can lead to structural strain or misalignment, increasing maintenance costs and downtime.
3. Ensures Smooth Ground Movement
By inserting the steering bypass pin, ground crews allow the nose wheels to move freely under tug control, which is vital for tight ramp turns or long tows.
4. Complies with SOPs and Manufacturer Protocols
Manufacturers like Airbus and Boeing mandate the use of steering bypass pins during pushbacks in their aircraft maintenance manuals (AMMs). Skipping this step could violate airline procedures or result in safety audits or fines.
Using the Bypass Pin: A330 vs. B777 Procedures
Airbus A330 Steering Bypass Pin Use

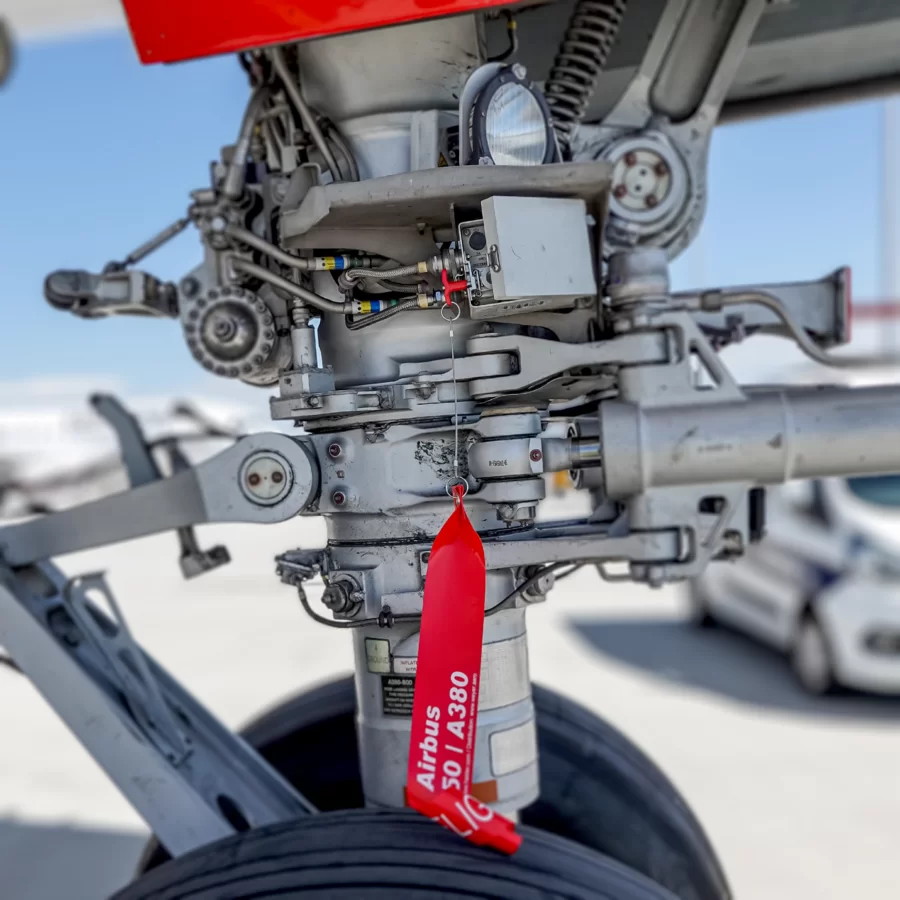

- The A330 requires insertion of the bypass pin into the nose gear torque link assembly, located near the forward strut.
- Once inserted, a flag marked “REMOVE BEFORE FLIGHT” hangs visibly as a safety warning.
- The pin disables the aircraft’s hydraulic steering system and redirects nose gear control to the tug.
Boeing 777 Steering Bypass Pin Use
- On the B777, the bypass pin is inserted into a dedicated port on the nose gear, typically beneath the forward fuselage.
- Inserting the pin activates a hydraulic bypass valve that relieves pressure in the steering actuators.
- Like the A330, a visual flag indicates the pin is inserted, reminding crews to remove it before taxi or flight.
Key Safety Tips for Bypass Pin Use
✅ Always verify the correct pin is used for the aircraft type.
✅ Confirm full insertion and locking before towing.
✅ Coordinate with the flight crew to ensure steering is disengaged.
✅ Remove the bypass pin immediately after towing, before flight.
✅ Keep pin flags clean and legible—worn-out warnings can be missed.
Common Pitfalls to Avoid
- Towing without inserting the pin — causes internal hydraulic damage.
- Forgetting to remove the pin post-tow — results in a loss of steering authority on taxi.
- Using the wrong pin — even among Airbus or Boeing families, pins may not be interchangeable.

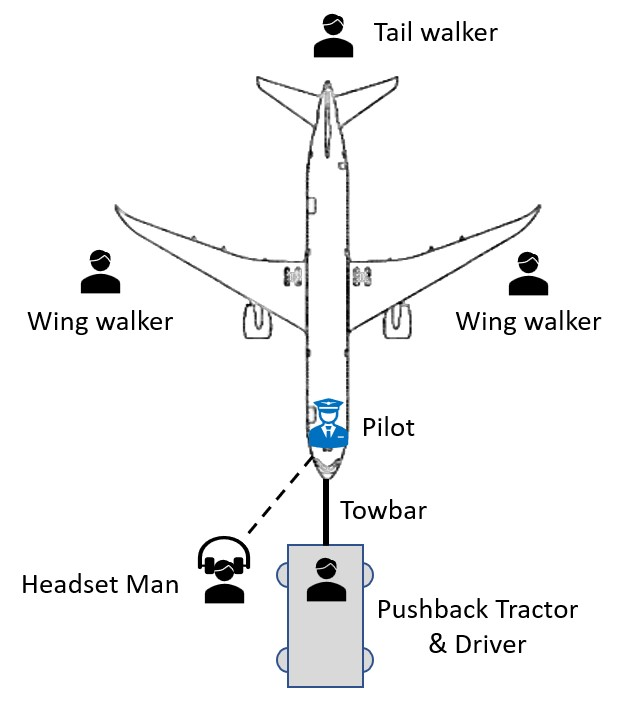

- Poor ground-to-cockpit communication — leads to misaligned assumptions during pushback.
Whether working with a narrow-body or a massive wide-body aircraft like the A330 or B777, the steering bypass pin is a non-negotiable tool for safe and compliant towing operations. While small, its role in preventing hydraulic damage, ensuring smooth ground movement, and maintaining flight readiness is massive. Proper usage, combined with team communication and adherence to SOPs, ensures both aircraft safety and operational efficiency.
